Creality Ender-5 Max

Buy

Creality Ender-5 Max

Rs 265 000

Creality · CoreXY · 400 × 400 × 400 mm

Ender-5
Max

Maximize Your Productivity

Buy Now →
Performance

The Efficiency & Reliability You Need

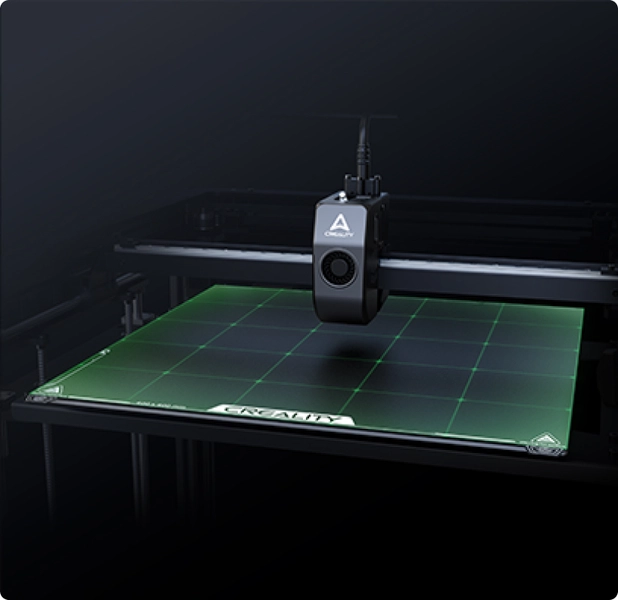

Pro-level Print Quality
Pro-level Print Quality
Rigid all-metal frame and 64-point auto bed leveling for consistently perfect prints.

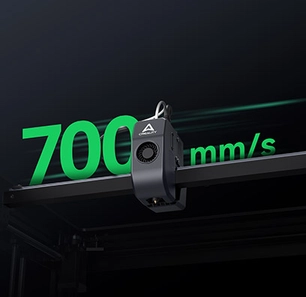

Ultra Fast Printing
Ultra Fast Printing
700 mm/s industry-leading speed for a CoreXY printer — your time is never wasted.
Expanded Capacity
Expanded Capacity
400 × 400 × 400 mm build volume — among the largest in its professional class.

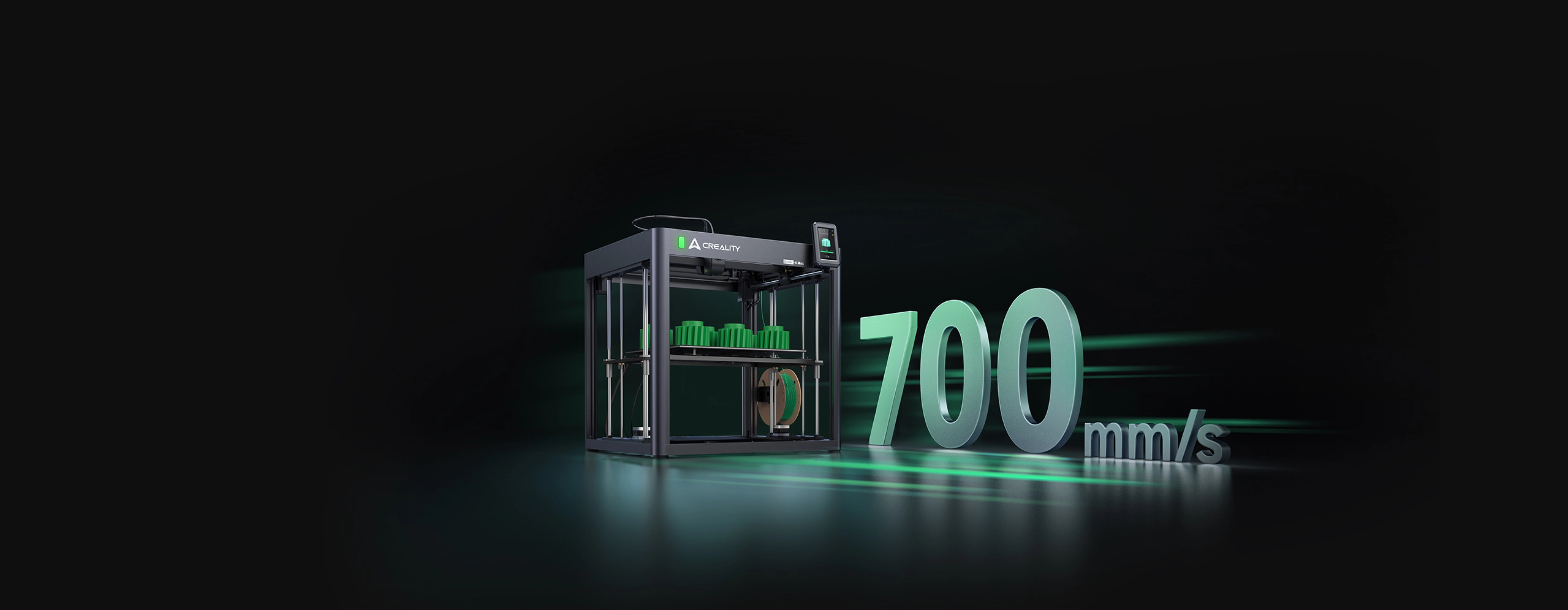

Lightning Fast Speed
Speed

Lightning Fast
for Time Efficiency

Both X and Y-axis use a 42-76 stepper motor that offers unprecedented power for movement. Printing as fast as 700 mm/s, it will deliver prints in no time.

500 mm/s
Typical Speed for Quality
700 mm/s
Maximum Speed
20,000 mm/s²
Maximum Acceleration

*Data from Creality Lab. Hyper Series filaments recommended for quality results when printing fast.

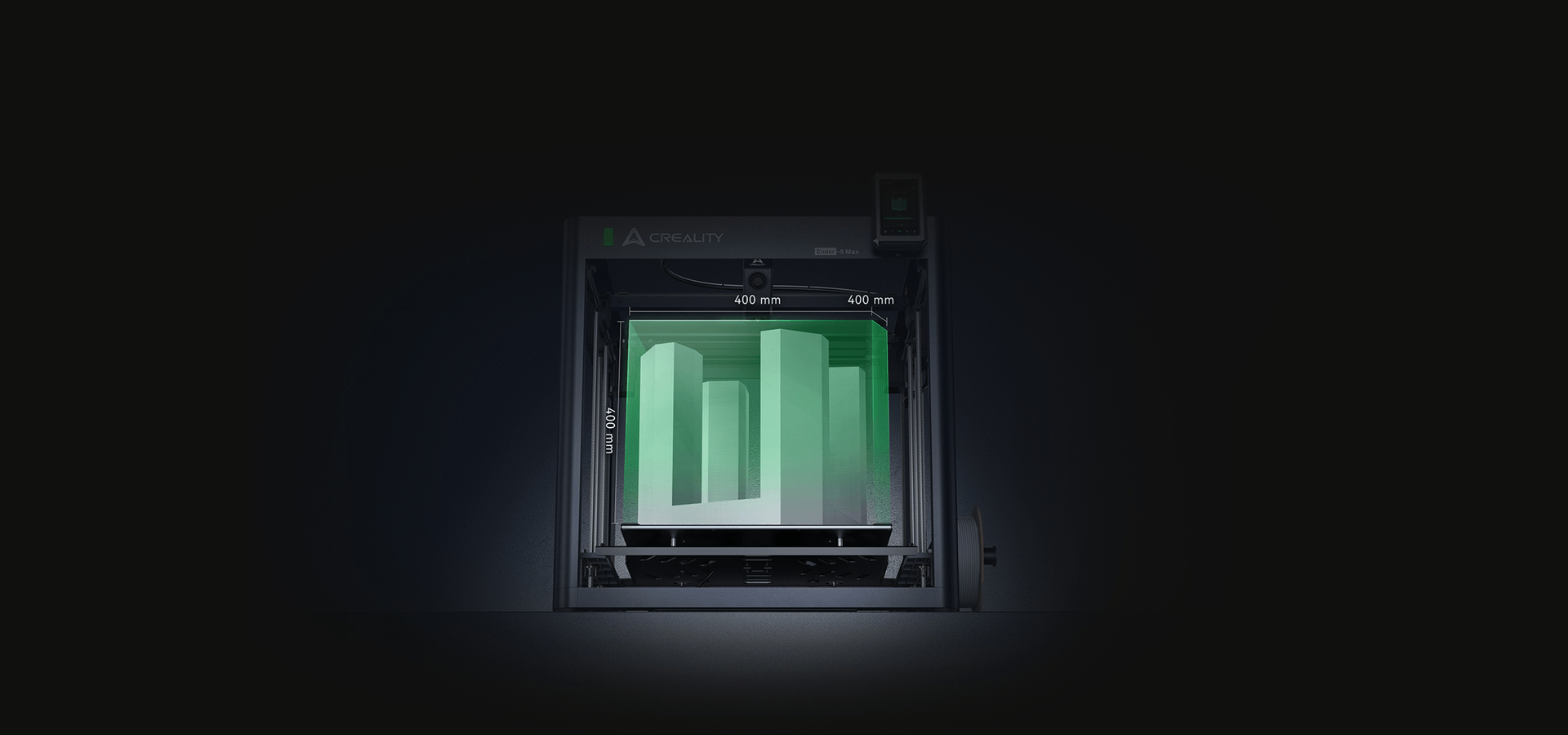

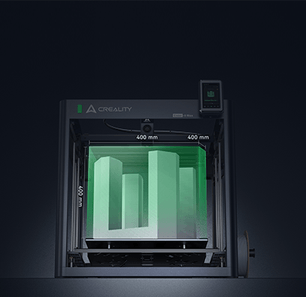

Expanded Capacity 400x400x400mm
Build Volume

Expanded Capacity
to Gain Much More

The enormous 400 × 400 × 400 mm build volume of Ender-5 Max is rarely seen in today's professional bed droppers. Whether printing small parts in batches or creating a huge model in one piece, Ender-5 Max is the no-brainer choice.

The Vastly Detailed

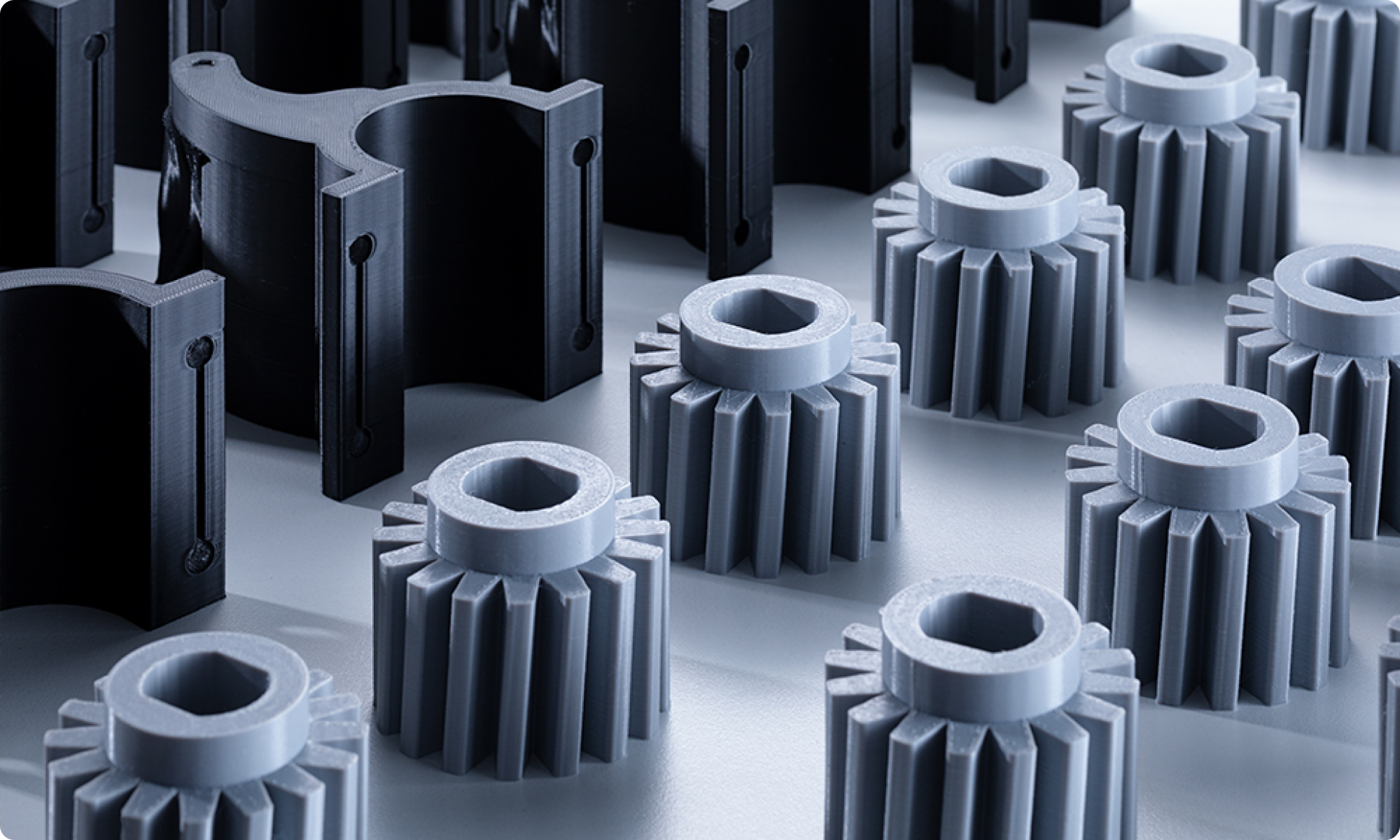

Parts in Bulk
Parts in Bulk

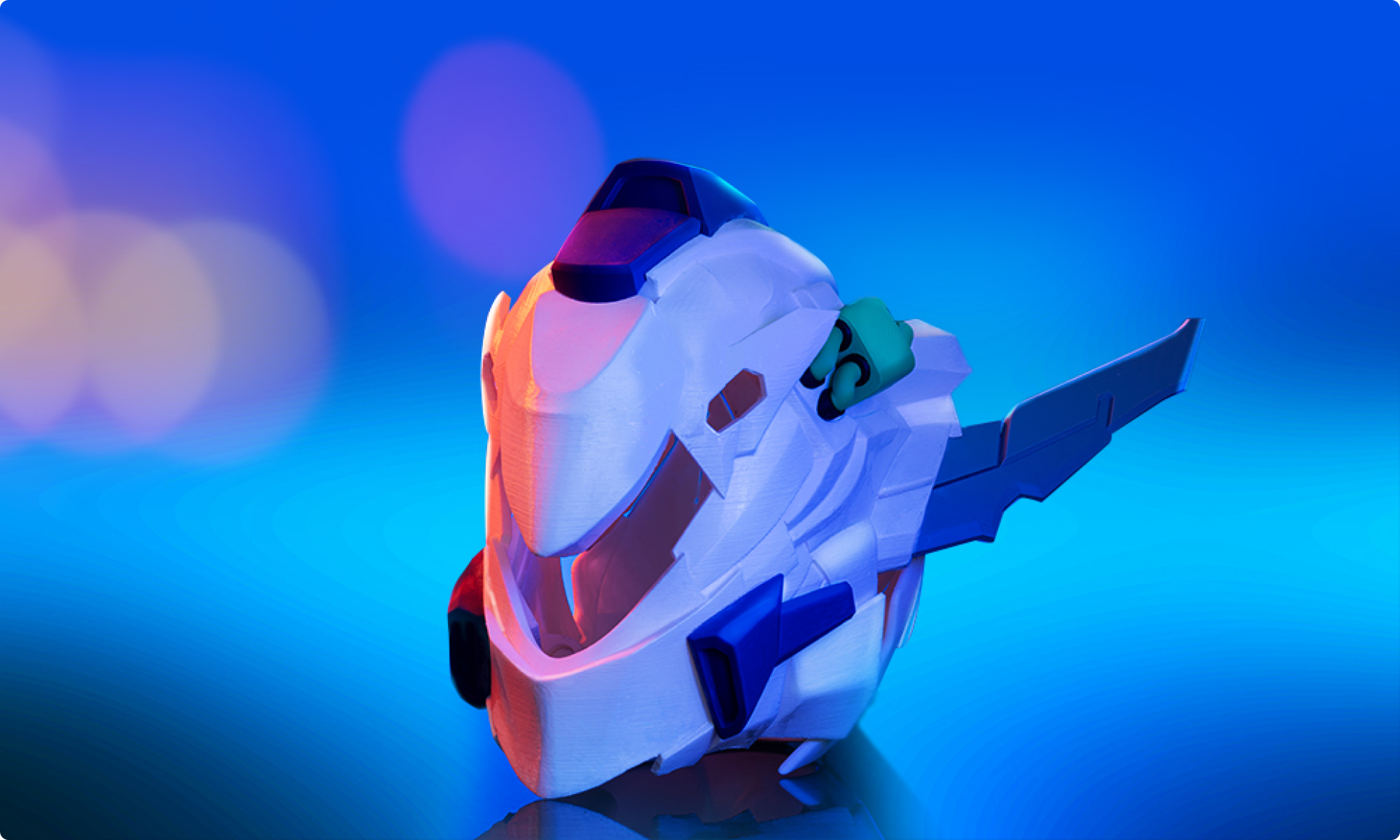

One-piece Print
Model by @3D Dimensions
Parts in Bulk

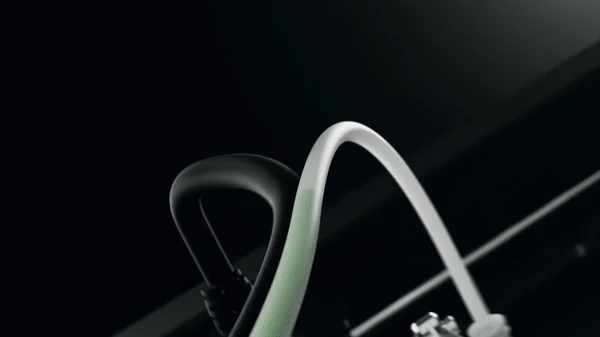

Reliable Extruder
Extruder

Reliable Extruder,
Minimal Downtime

Dual tempered gears that have endured 500 hours* of durability tests for continuous extruding. Trust it for 24/7 production without downtime for inspection or maintenance.

*Data from Creality Lab.

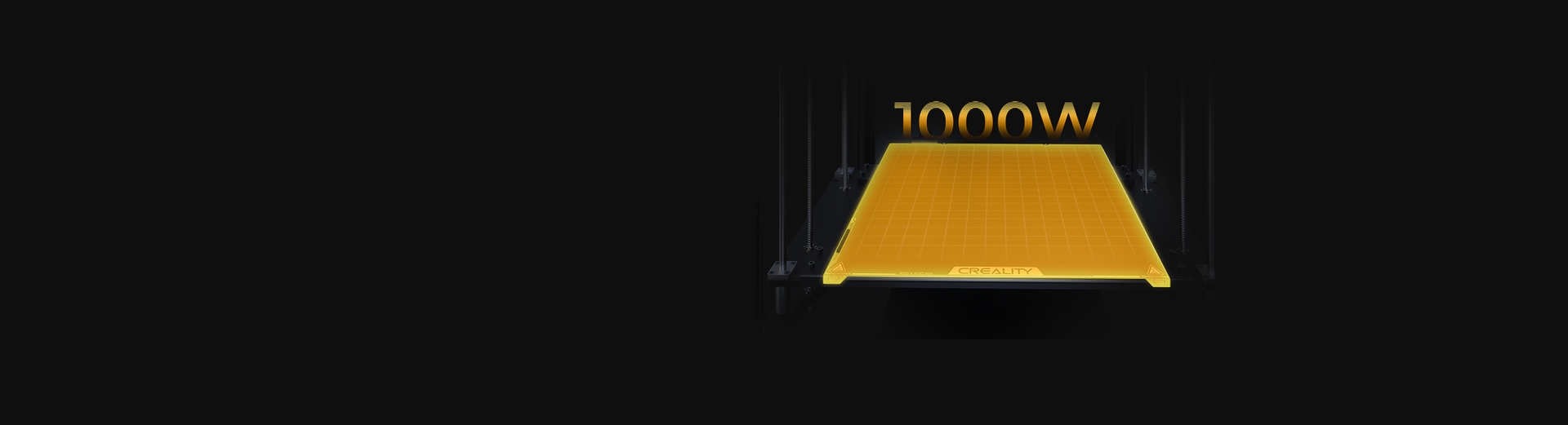

1000W Heatbed
Heatbed

1000W Heatbed
Heats Up Rapidly

The embedded 1000W heater heats the aluminum alloy heatbed to 80 °C (max 100 °C) in just 200 seconds — start your production quicker and spend less time waiting.

Heatbed Efficiency
Ender-5 Max
200 s*
Other
697 s*

*Data from Creality Lab. Tested at 25 °C (77 °F).

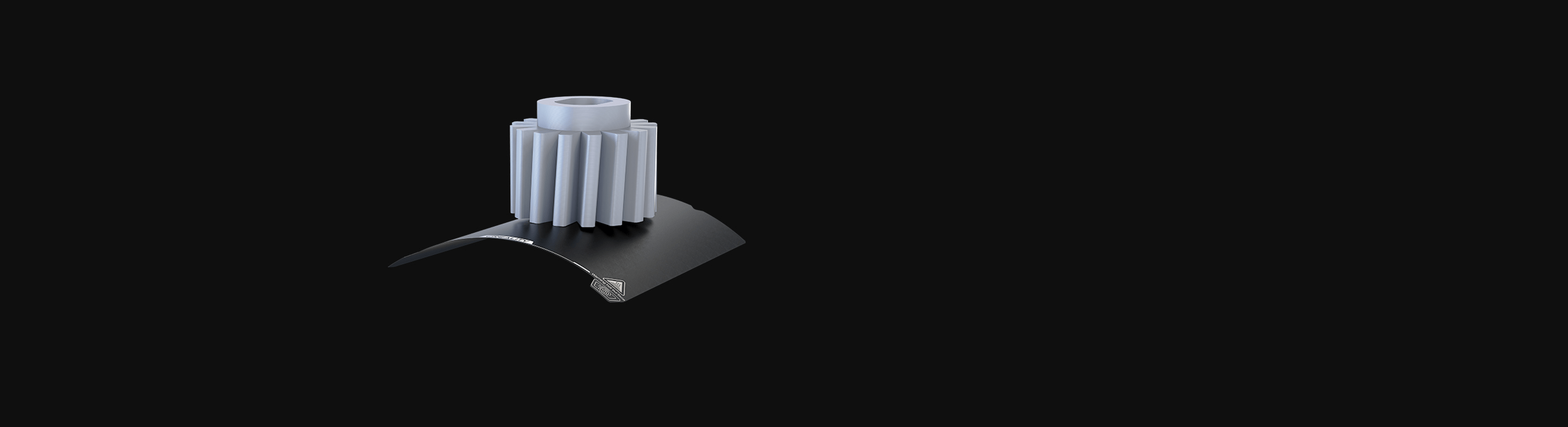

All-New Epoxy Build Plate
Build Plate

All-New Epoxy
Build Plate

Lower temperature for bed adhesion boosts overall power efficiency. The bendable build plate lets you easily retrieve finished prints.

Bed Temp for Optimal PLA Adhesion*
45 °C
Epoxy Resin
Build Plate
60 °C
PEI Spring Steel
Build Plate

*Data from Creality Lab. Tested at 25 °C (77 °F).

Tailor-made for Print Farms

Tailor-made for Print Farms

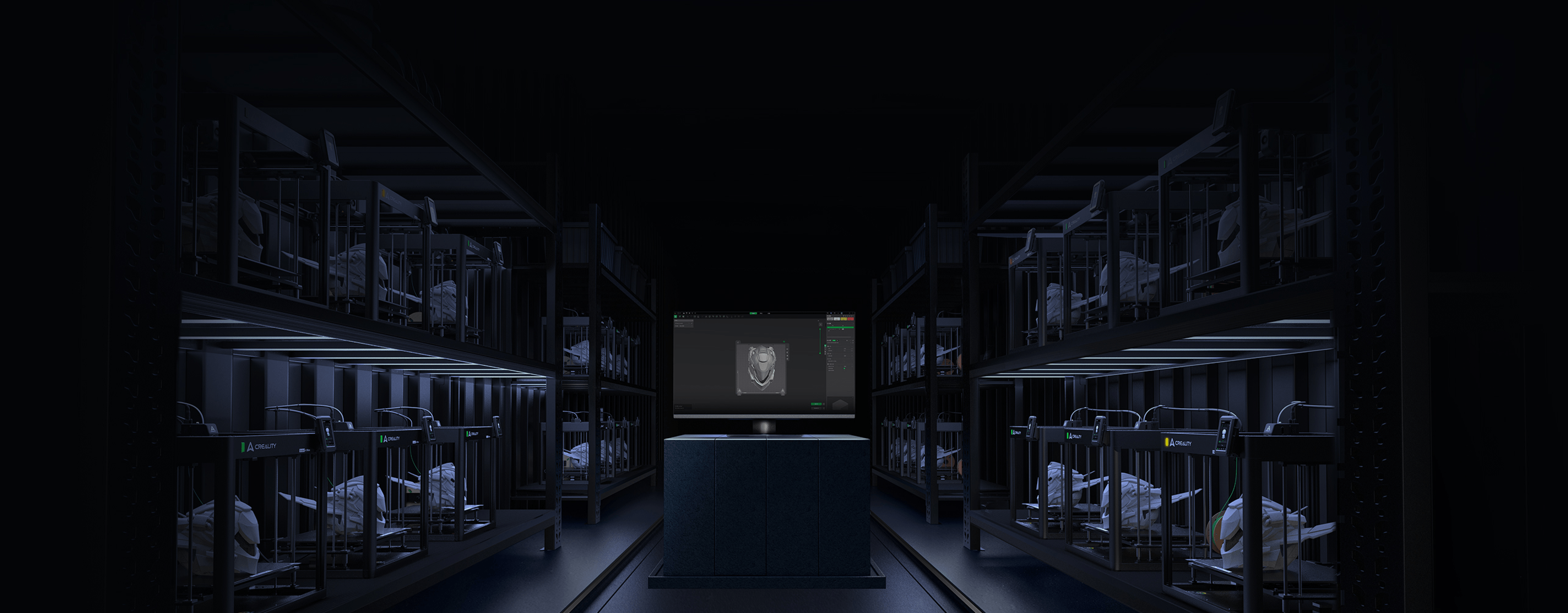

Manage Multiple Printers
Software

Manage Multiple Printers
on One PC

Ender-5 Max is connected with fine-tuned profiles and filament/nozzle presets in the Creality Print slicer — group up and manage multiple printers on a PC over WLAN.

LAN PrintLAN Print
Filament Presets40+ Filament Presets

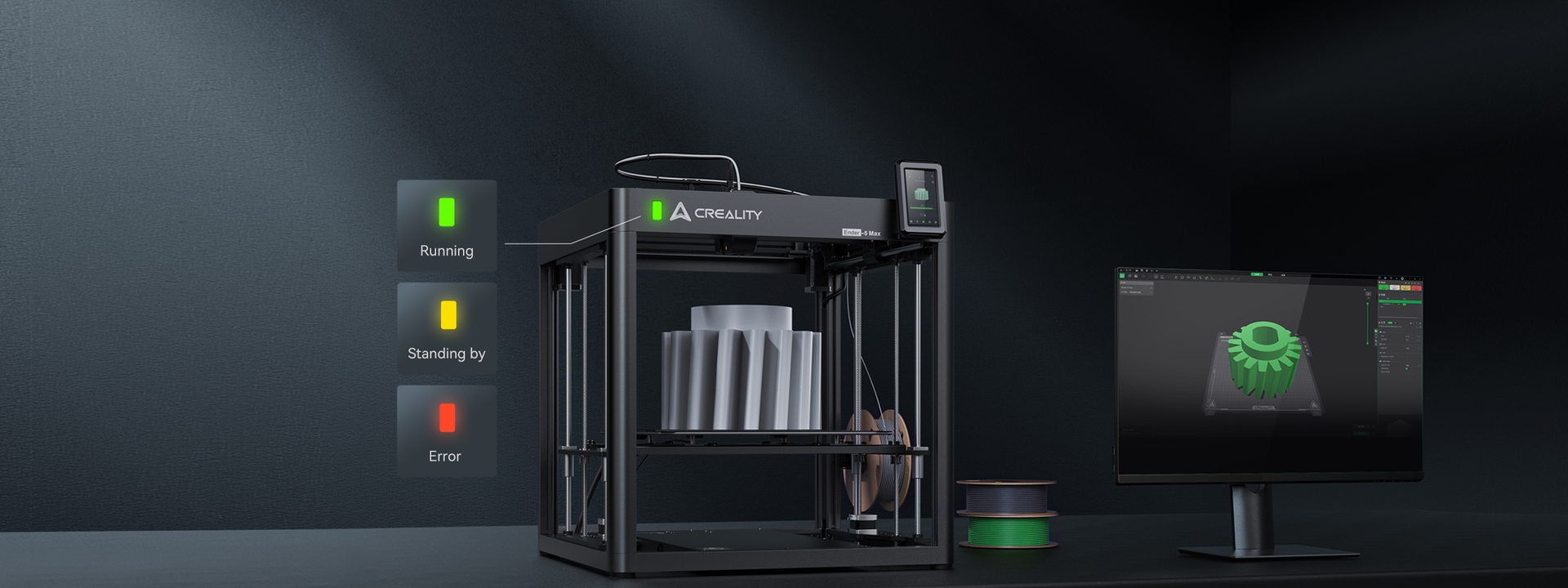

3-color Status Light
Status Indicator

Status Indication by a
3-color Light

Visible from up to 10 meters* — the indicator light informs you of exact machine status. No more checking each printer closely.

*Data from Creality Lab.

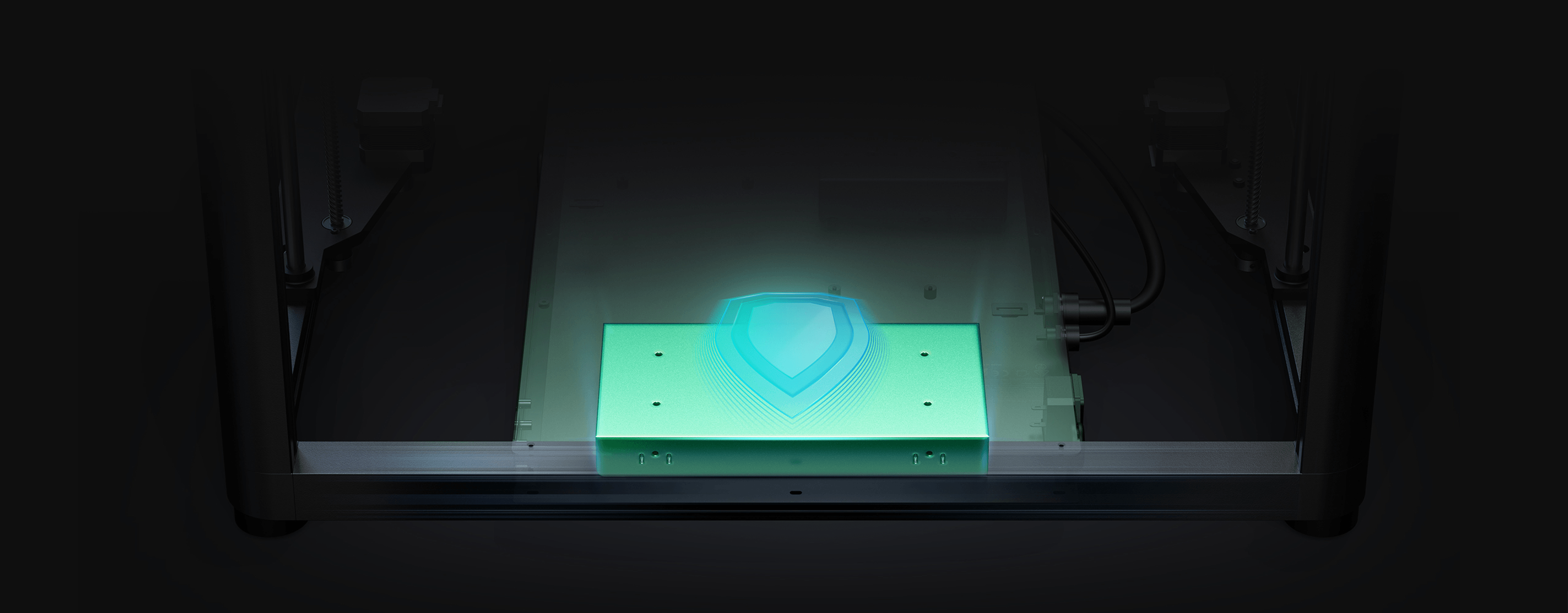

Adaptive Input Voltages
Power

Adaptive to
Input Voltages
Worldwide

Supports 100V–240V input voltages and operates stably regardless of location. Built-in double safety fuses on the heatbed keep you safe at all times.

Features

More Empowering Features

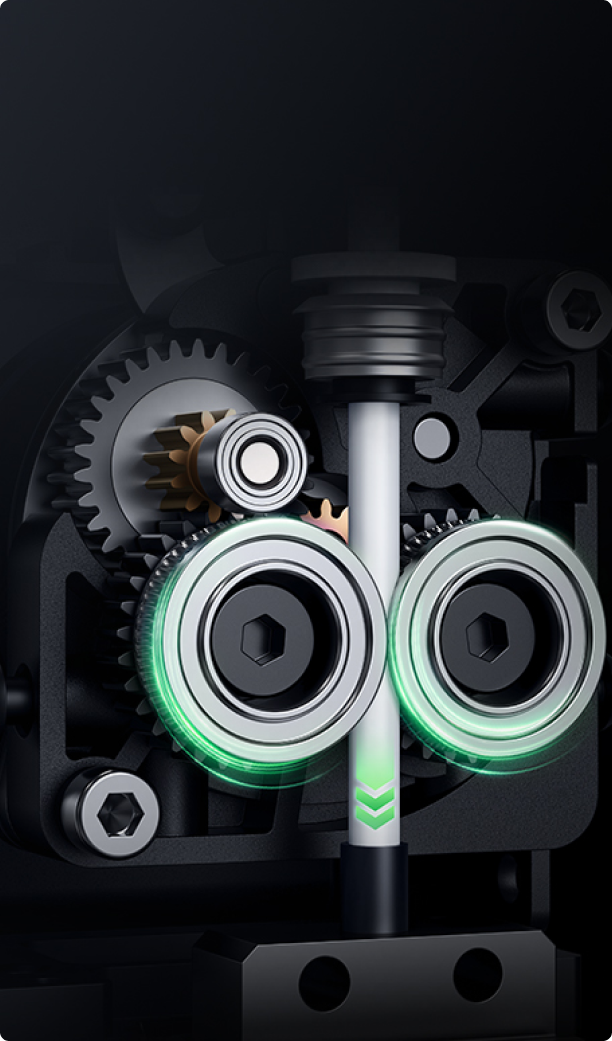

Auto-Load/Unload Filament
Auto-Load/Unload Filament
Switch filaments much more easily with one-tap automation.

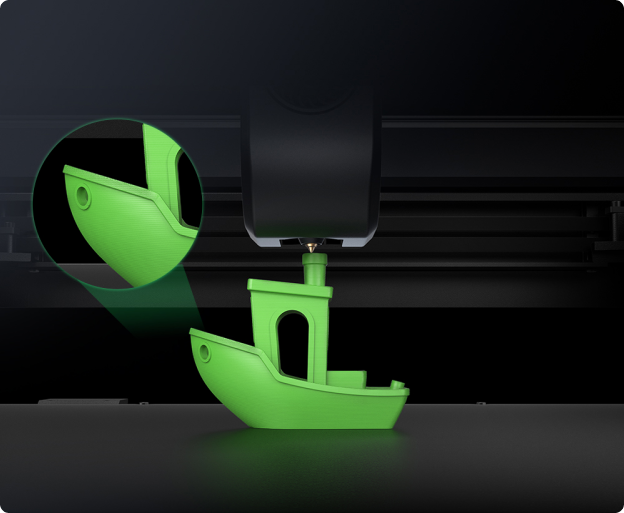

Active Input Shaping
Active Input Shaping
Reduce vibrations and ringing artifacts for pristine surfaces.
8G Large ROM
8G Large ROM
Store more print files for uninterrupted mass production.
Direct Drive Extruder
Direct Drive Extruder
Precise filament control and compatibility with flexible materials.
Accessories

Optional Upgrades

Nebula Smart Kit
Nebula Smart Kit
Upgrade to Klipper firmware for advanced print control and remote monitoring.

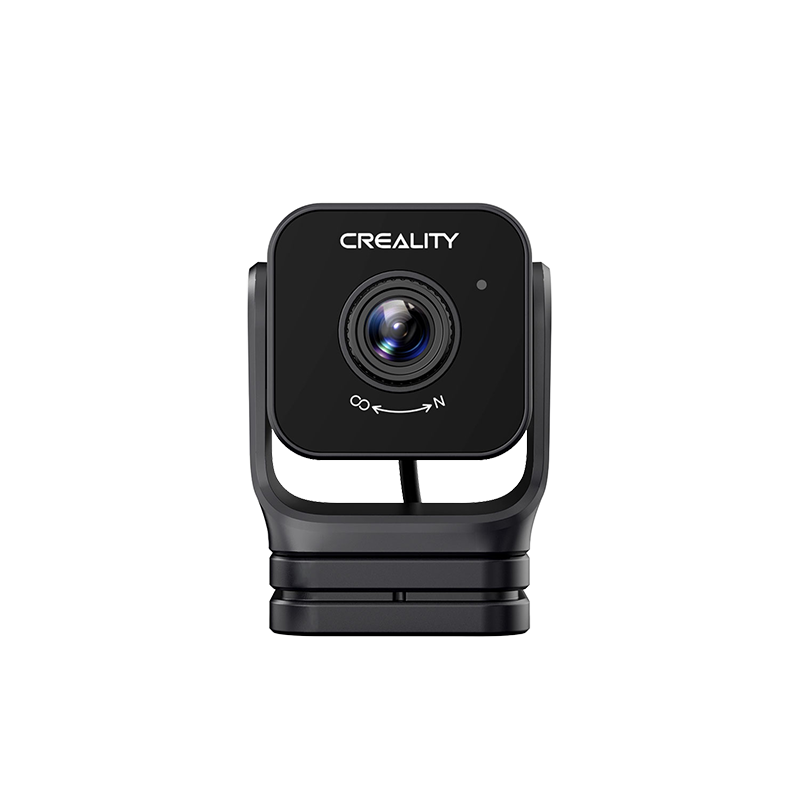

HD Camera
HD Camera
Full HD 1080p. Supports real-time monitoring and time-lapse photography.

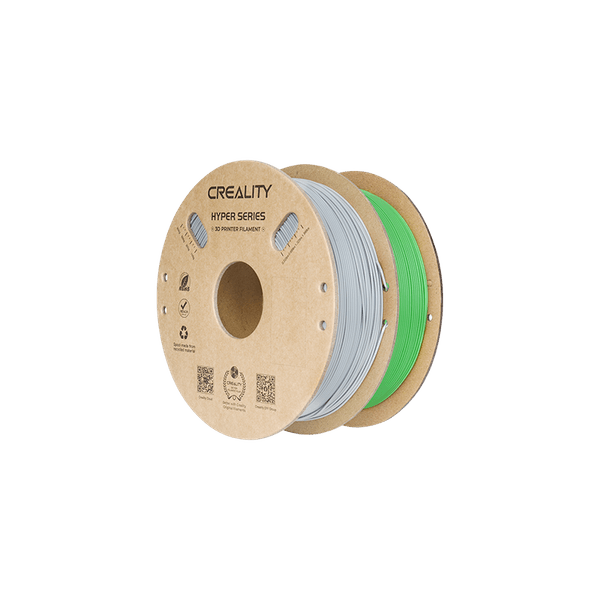

Hyper PLA Filaments
Hyper PLA Filaments
Better fluidity and quicker cooldown, keeping up both print quality and speed.

Specifications

Printing TechnologyFused Deposition Modeling
Build Volume400 × 400 × 400 mm
Printer Dimensions649 × 721 × 850 mm
Package Dimensions732 × 679 × 410 mm
Printer Net Weight≤ 25.9 kg
Gross Weight≤ 31.9 kg
Printing Speed≤ 700 mm/s
Acceleration≤ 20,000 mm/s²
Printing Accuracy100 ± 0.1 mm
Layer Height0.05–0.3 mm
ExtruderDirect drive extruder
Filament Diameter1.75 mm
Nozzle Diameter0.4 mm (compatible 0.6/0.8 mm)
Nozzle Temperature≤ 300 °C
Heatbed Temperature≤ 100 °C
Build PlateEpoxy flexible build plate
Leveling Mode64-point auto leveling
Indicator LightRed / Green / Yellow
File TransferUSB drive / Wi-Fi
Display Screen4.3″ color touch screen
CameraOptional
Power Loss RecoveryYes
Filament Runout SensorYes
Input ShapingYes
Lighting KitYes
Sleep ModeYes
Rated Voltage100–240 V ~ AC 50/60 Hz
Rated Power1250 W
Operating Temperature5–40 °C
Supported FilamentsHyper PLA / PLA / PETG / TPU95A / ABS / ASA / PLA-CF / PA / PLA-Silk
Printable File FormatG-code
Slicing SoftwareCreality Print 5.1 or later
File Formats for SlicingSTL / OBJ / 3MF
App for Cloud PrintingCreality Cloud
UI LanguagesEnglish, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese, Korean, Chinese
